The replacement motor matched the published voltage and power ratings, but the hidden wiring configuration did not match the HK3 container's control logic.
That mismatch created startup delays, tripped protection circuits, and forced on-site rewiring work that should have been prevented during procurement.
Key Takeaways
- Do not treat a matching spec sheet as proof of cabinet compatibility.
- Ask for internal wiring diagrams, torque curves, and startup behavior before ordering replacement motors.
- Use the case study to improve pump and motor procurement checklists for every hydro deployment.
Deployment
What Went Wrong
- The incoming motor arrived in Delta configuration while the HK3 cabinet expected Wye / Star.
- The cabinet could not start the motor cleanly, and protection logic tripped on phase imbalance.
- The shipment did not include a wiring diagram detailed enough to catch the mismatch before installation.

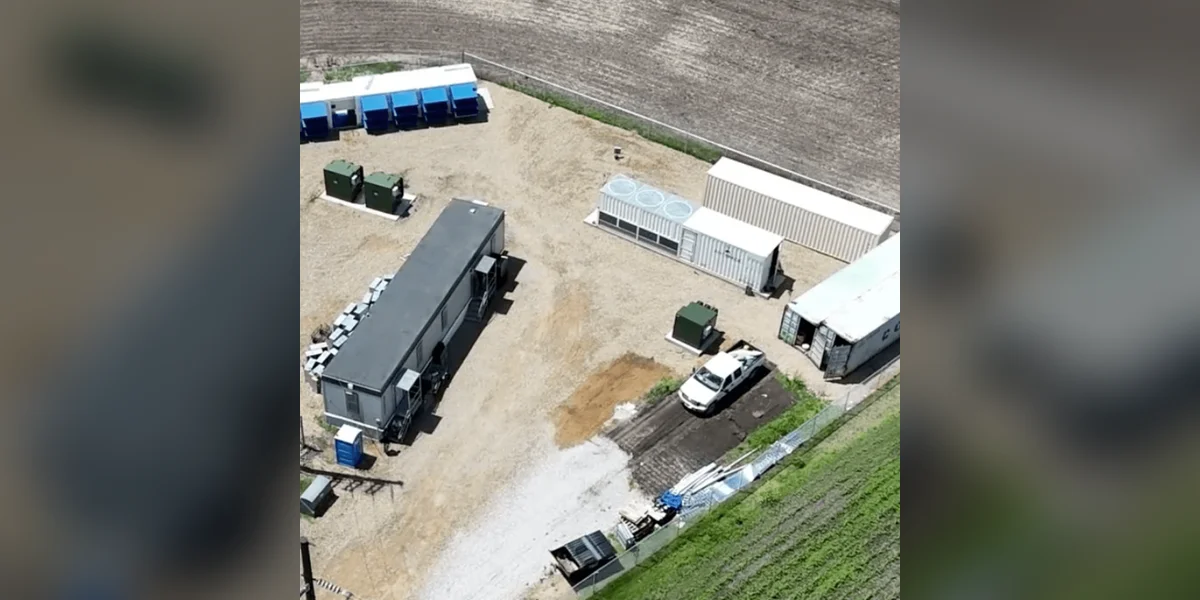

In hydro deployment timelines, even a small wiring surprise turns into lost commissioning hours, delayed hashrate, and extra vendor coordination when the site is already under schedule pressure.
Deployment
How to Identify Wiring Configuration in the Field
- Open the terminal box and inspect jumper placement. Delta typically bridges the phase pairs, while Wye joins one side of each winding to a common point.
- Use continuity testing to map the winding pairs directly instead of trusting stickers or assumptions.
- Document U1/U2, V1/V2, and W1/W2 clearly before moving any jumpers.
Deployment
How the Motor Was Rewired
- Verify winding pairs with resistance and continuity testing.
- Remove the Delta jumpers that bridge the phases.
- Join U2, V2, and W2 to create the Wye center point.
- Reconnect U1, V1, and W1 back to L1, L2, and L3 from the HK3 power bus.
- Confirm phasing and startup torque through a controlled soft-start ramp.
Field safety note
Only a qualified technician should perform this rewrite. A bad reconnection can damage the soft starter, overload protection, or the motor itself.
Deployment
Motor and Pump Pre-Procurement Checklist
| Question | Why it matters | What to request |
|---|---|---|
| Is the motor wired for Wye by default? | Prevents cabinet incompatibility | Request the internal wiring diagram before ordering |
| Can the supplier share torque and startup behavior? | Confirms soft-start compatibility | Ask for OEM wiring and torque sheets |
| What is the inrush current and phase feedback behavior? | Prevents nuisance trips and alarm storms | Request full nameplate electrical parameters |
| Does the motor align with HK3 overload settings? | Protects cabinet hardware during startup | Share cabinet specs and request written compatibility confirmation |
Deployment
Field Takeaways
- Never assume wiring configuration just because the replacement is marketed as equivalent.
- Request internal schematics early enough to resolve issues before freight is released.
- Keep a simple Wye-vs-Delta reference sheet on-site for technicians performing receiving inspections.
- Treat every replacement component as a custom integration until the cabinet proves otherwise.
